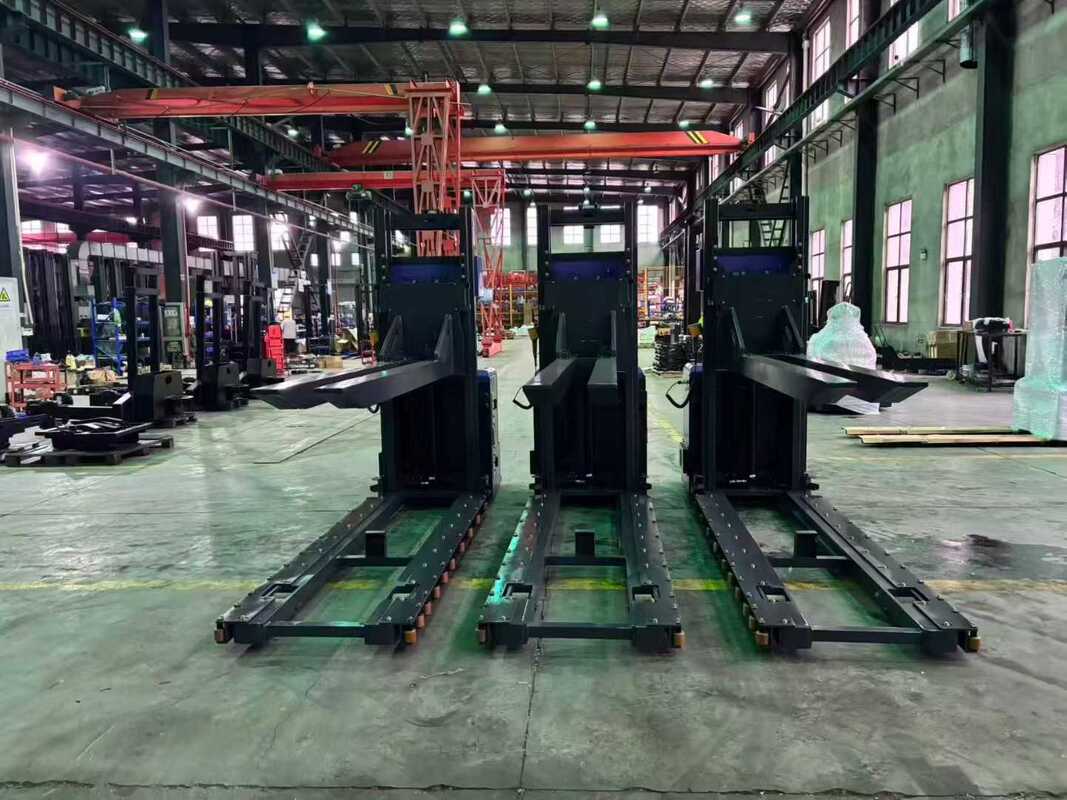

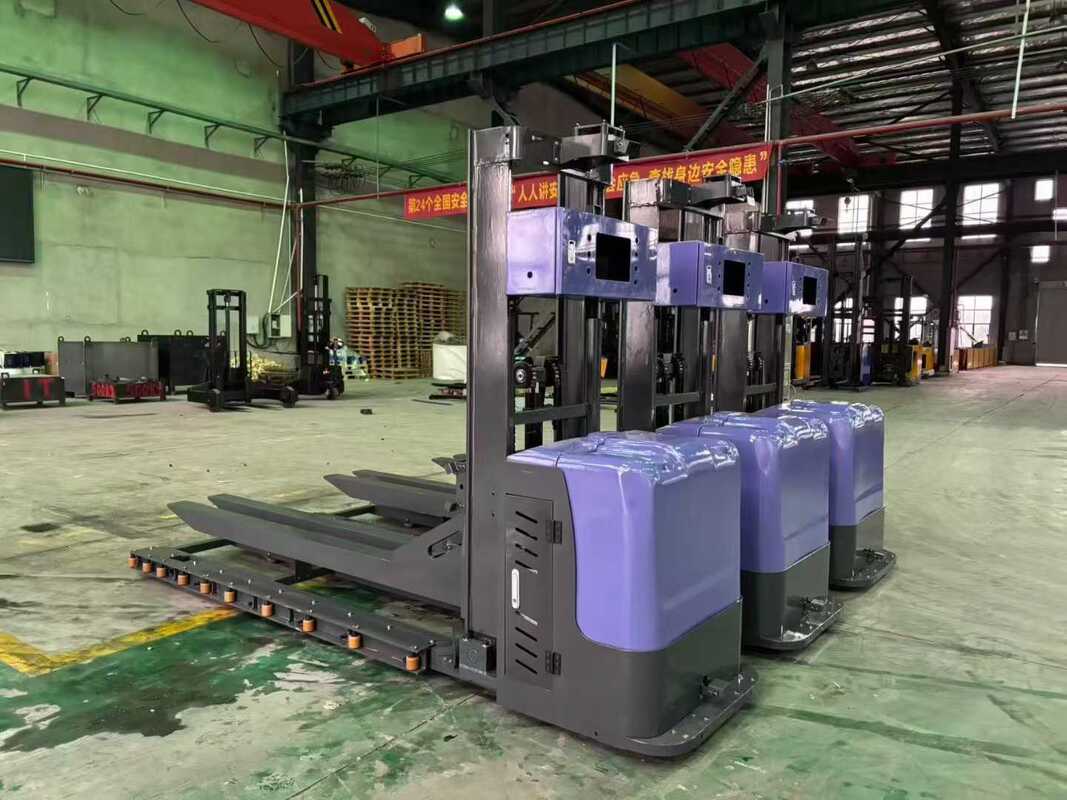

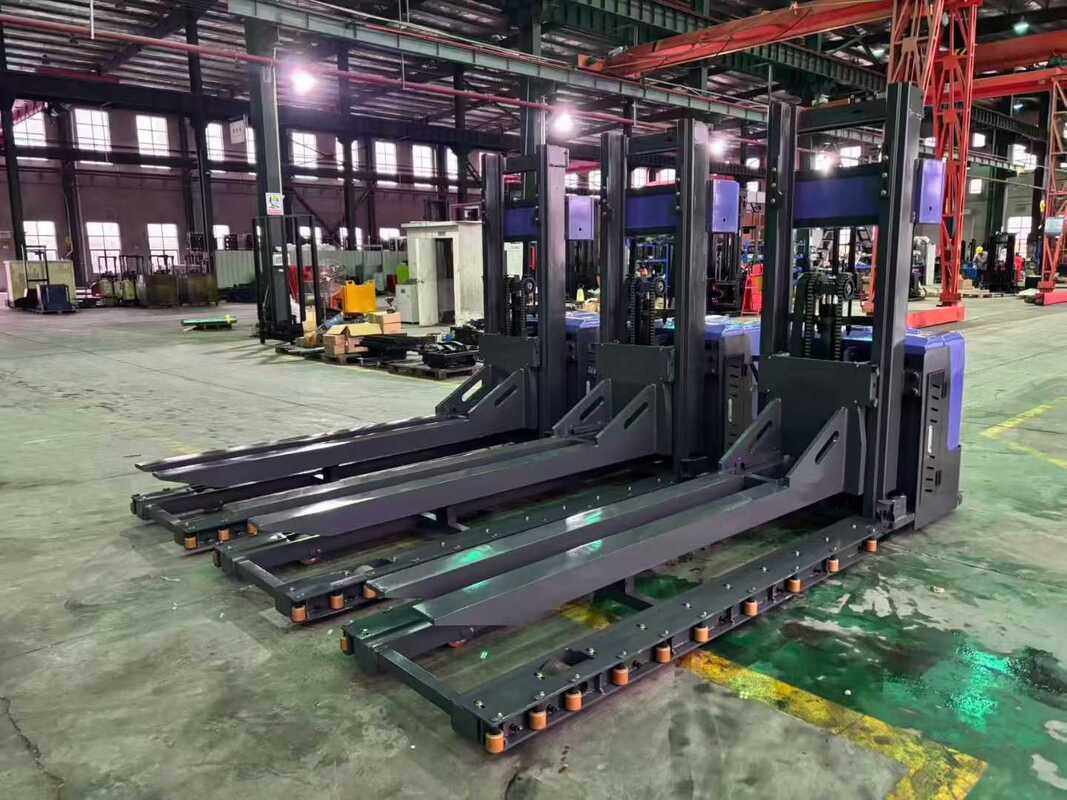

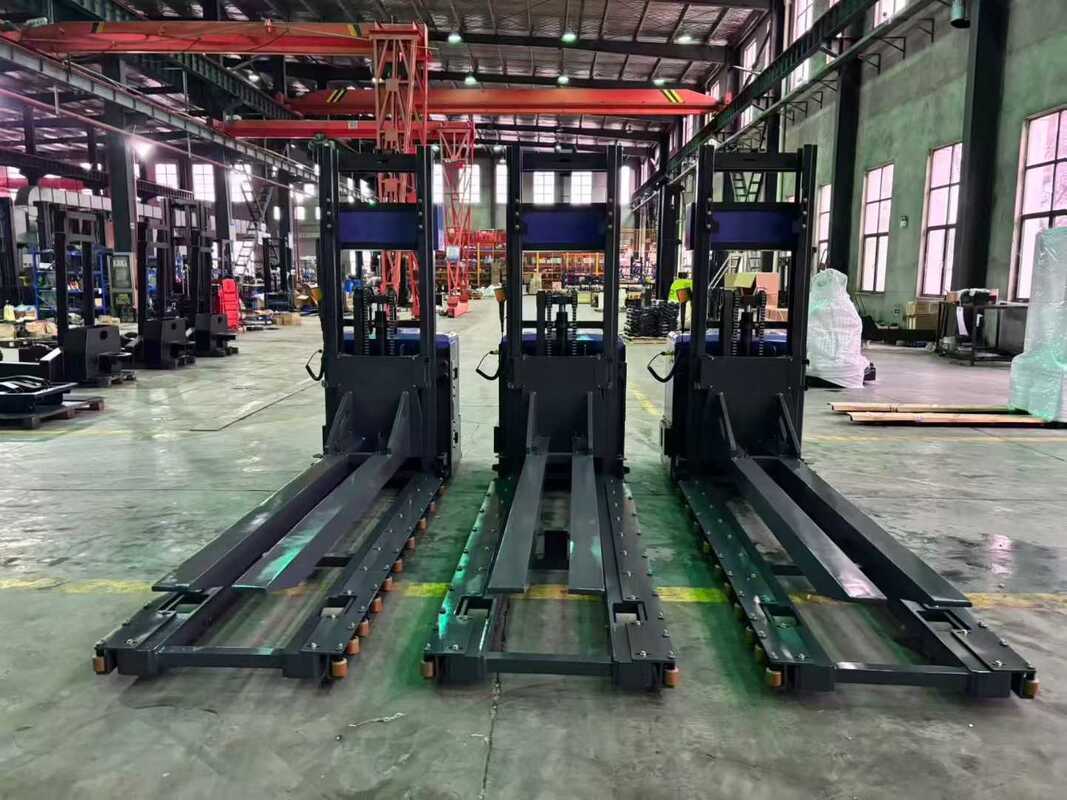

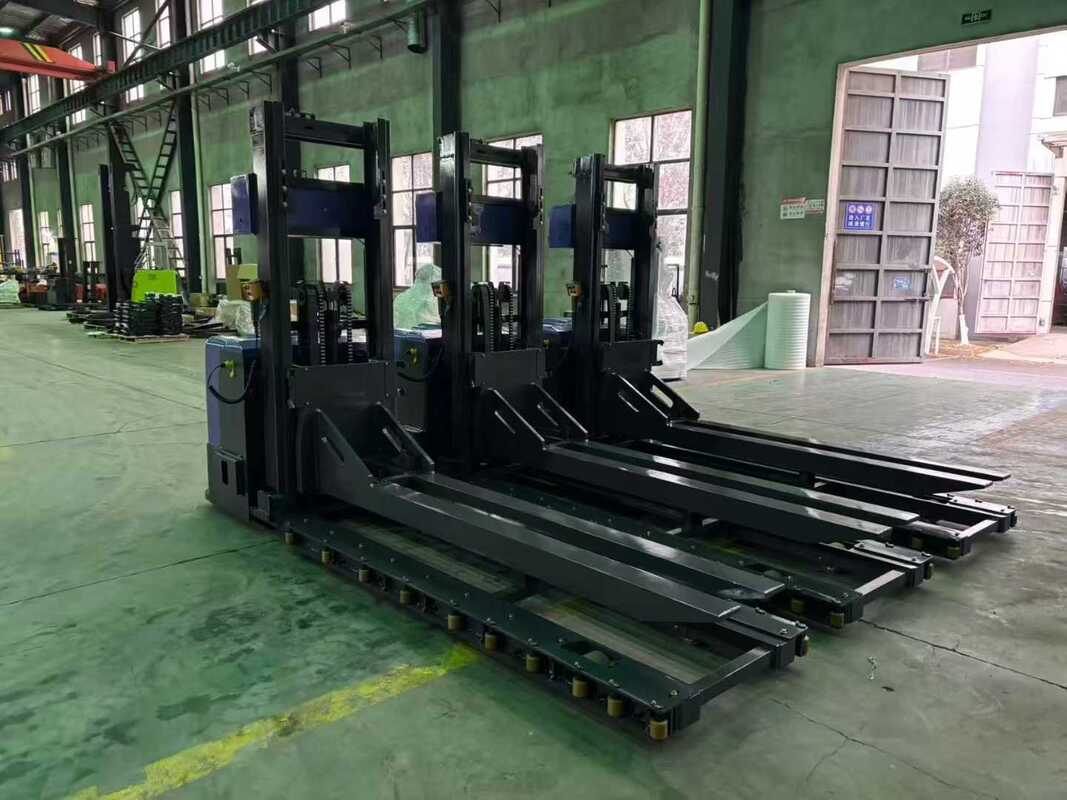

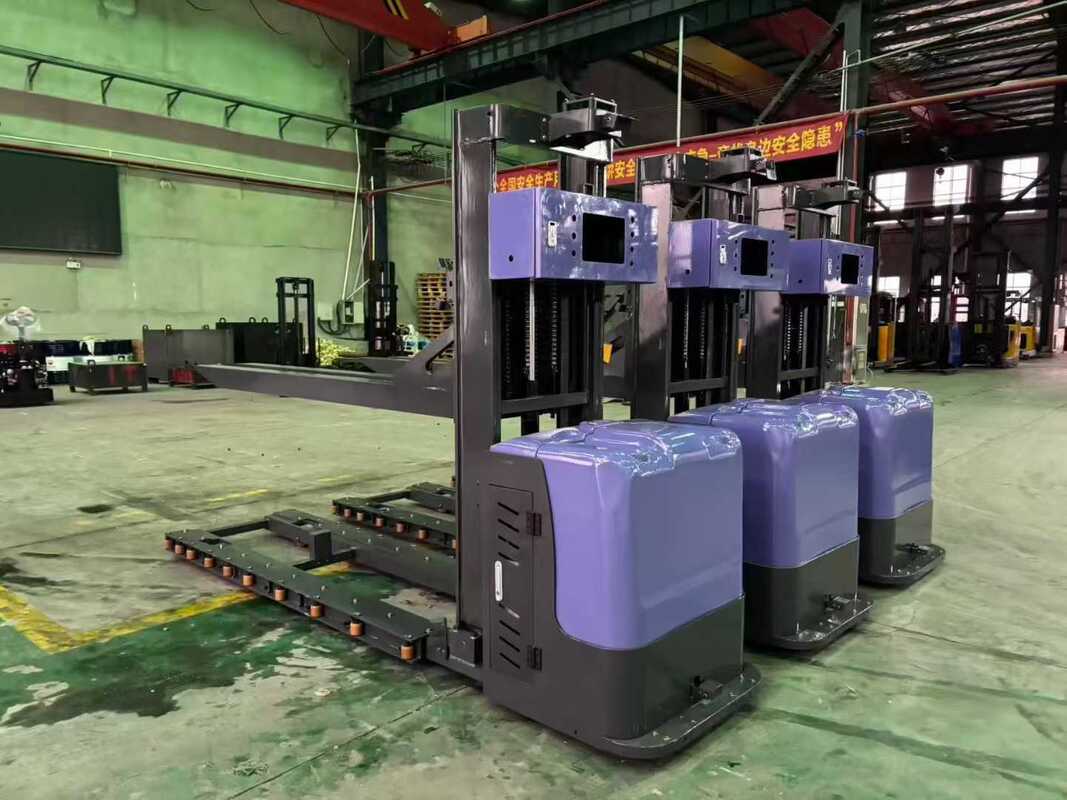

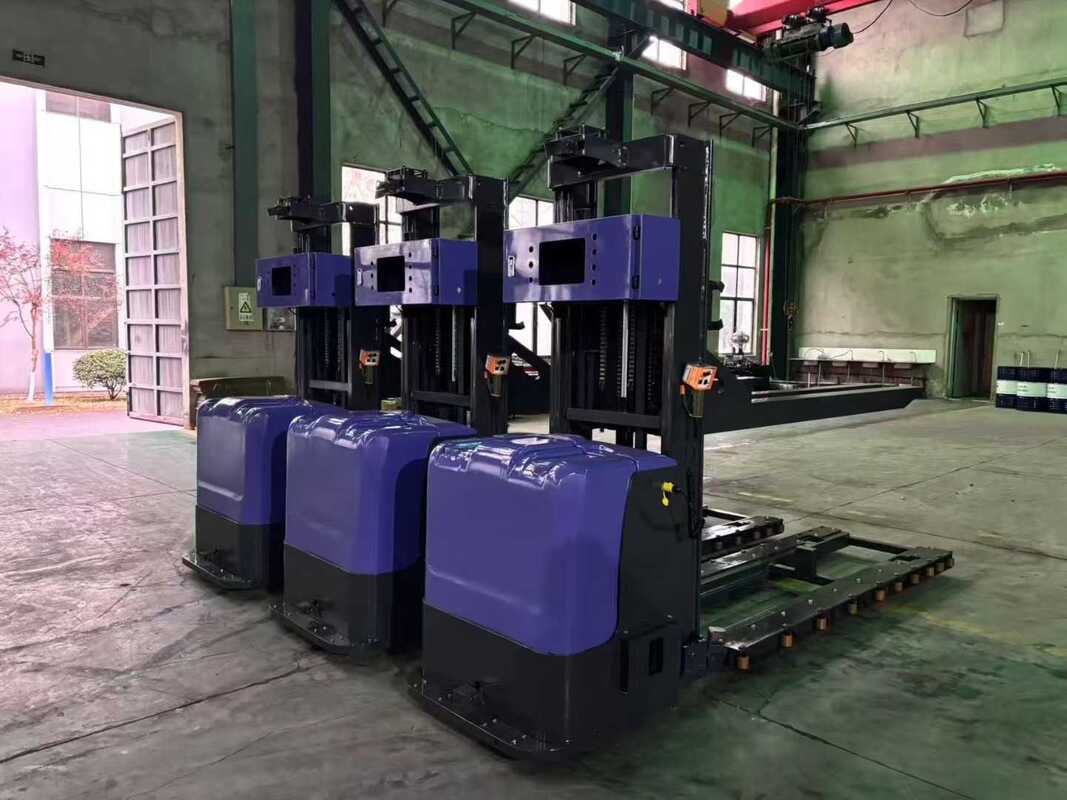

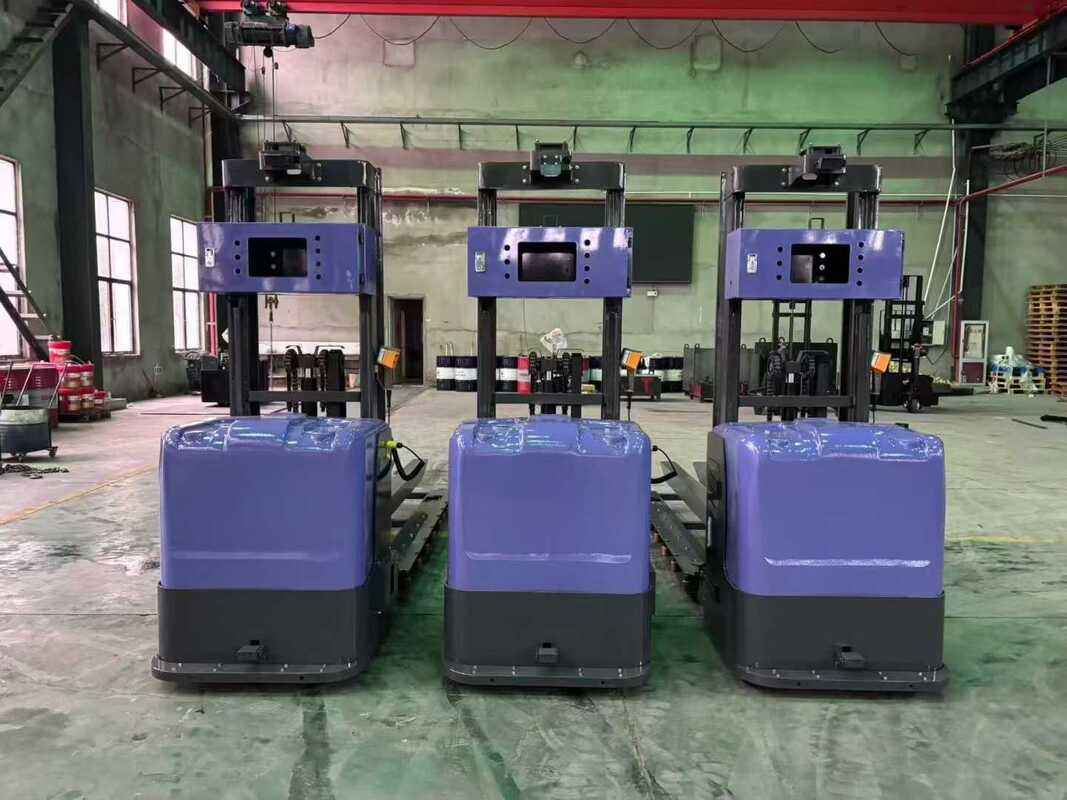

Furnace Stacking AGV Chassis, For Production Lines, High-Temperature, 1600kg / 1600mm
-
وزنه بلند کردن یکنواخت1600 کیلوگرم
-
ارتفاع بالابر1600 میلی متر
-
طول چنگال2475 میلی متر
-
عرض چنگال بیرونی685 میلی متر
-
سیستم عاملسیستم کنترل کورتیس
-
محل منبععیاشی
-
نام تجاریYONGJIELI
-
گواهیCE
-
شماره مدلCDD
-
مقدار حداقل تعداد سفارش1 مجموعه
-
قیمتnegotiable
-
جزئیات بسته بندیفله یا ظرف
-
زمان تحویل30 روز کاری
-
شرایط پرداختL/C ، D/A ، T/T ، Western Union
-
قابلیت ارائه30 مجموعه در ماه (محصولات سفارشی ممکن است کندتر باشند)
Furnace Stacking AGV Chassis, For Production Lines, High-Temperature, 1600kg / 1600mm
Description
This furnace-stacking AGV chassis is engineered for heavy-duty industrial automation, featuring a robust 1600kg uniform load capacity and 1600mm lifting height. Its extended 2475mm forks ensure stable handling of large-sized loads, while the integrated CAN communication and CURTIS control system enable precise movement and seamless integration with automated workflows. Key components include an electro-hydraulic valve group with proportional lowering for smooth operation, customizable detection switch brackets, and a wired test handle for maintenance. Ideal for high-temperature or demanding industrial environments, particularly in furnace-adjacent applications.
Parameters
| Uniform Load Capacity | 1600kg |
| Lifting Height | 1600mm |
| Fork Length | 2475mm |
| Fork Outer Width | 385mm |
| Operating System | CURTIS Control System |
Electro-Hydraulic Valve Group with Proportional Lowering Valve
Scenarios
- Metallurgical Facilities: Automated handling of high-temperature materials near furnaces
- Heavy-Duty Warehouses: Transporting bulky industrial goods like metal coils or machinery
- Automated Production Lines: Integration with smart manufacturing systems for material transfer
- High-Temperature Zones: Stacking/transfer tasks in controlled industrial environments
- Customized Logistics: Adaptable for non-standard AGV configurations in specialized facilities
Notice
Customization / OEM available, we have abundant experience for clients worldwide.
We represent directly for the factory, price negotiable.
Please let us know via our email (houjiawen97@163.com). Thank you!
